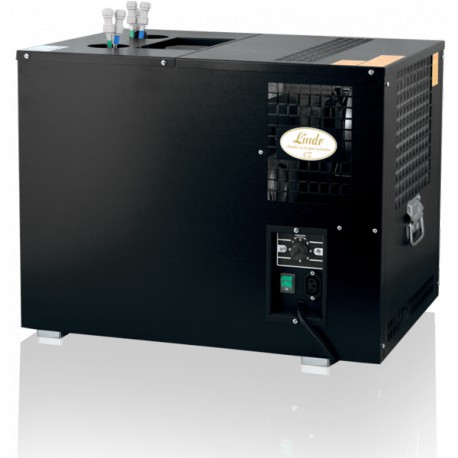

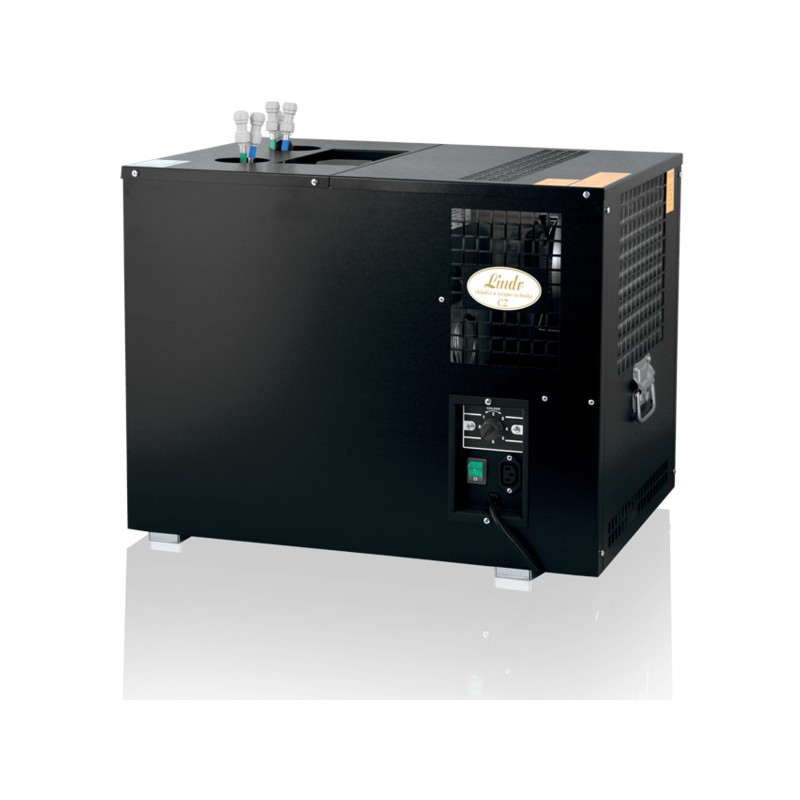

Lindr AS-110 (6 x Coolant loop + Quick-couplers)
The AS-110 beer cooling system is designed for professional beverage cooling in restaurants, bars and the catering industry.
- The AS-110 beer cooling system is designed for professional beverage cooling in restaurants, bars and the catering industry.
- This machine has a pump with a displacement of 8m, thanks to which the cooler may be situated in the cellar keeping the beverage chilled all the way to the tap.
- The AS - 110 has a continuous cooling capacity of 75-110 l/h.
- The modern compressor cooling unit uses the power input for direct transfer to chilling, which guarantees minimum energy usage.
- LINDR cooling technology is 45% more efficient than its power input.
- The cooling coils are made from stainless steel.
- The materials used meet the highest requirements for hygiene standards and guarantee a long working life of this cooler.
- The cooler also includes an adjustable temperature control with 7 different settings.
- The overflow on the side of the cooler is for regulation of the capacity of the water tank.
- Simple to use push-in fittings on top of the cooler ensure easy connection to the beverage supply.
- Two grab handles on the side of the machine enables the machine to be carried and moved with ease.
| Brand | Lindr |
| Water reservoir volume (l) | 38 |
| Ice bank | 10-20 |
| Duration of initial cooling (min.) | 30-40 |
| Dimensions (WxDxH mm) | 610x420x475 |
| Diameter of coolant loops (mm) | 8x0.5 |
| Output (l/h) To 0°C/Tk 50°C | 110 |
| Unit power (Hp) | 3/8 |
| Weight (kg) | 34 |
| After-cooling pump discharge (m) | 7 |
| Number of cooled beverages | 2 |
| Refrigerant | R134a |
| Lenght of cooling coils (m) | 14/14 |
| Nominal current (A) | 2.9 |
| Voltage | 220-240V 50Hz~1 |
| Power input (W) | 667 |
| ID # | 686 |
